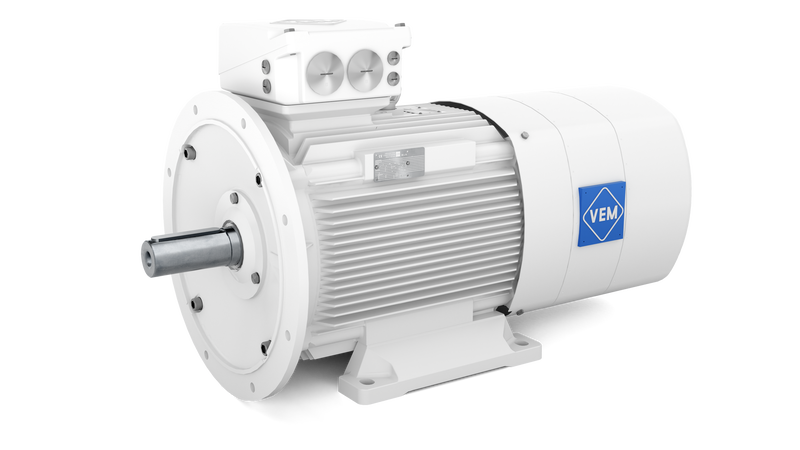

Brake motors

Brake motors are a safe choice in applications such as elevators, hoists, cranes, winches, conveyors or machine tools.

The motors can be supplied in the following versions in compliance with VO(EC) 640/2009

.
  • Without efficiency classification
  • Standard Efficiency IE1
  • High Efficiency IE2
  • Premium Efficiency IE3
  • Super Premium Efficiency IE4

Technical Data

Power 0,12-500 kW
Protection class IP 55
optionally IP 56, IP 65 according to DIN EN 60034-5 (IEC 60034-5)
Size 63-355
Efficiency class according to IEC 60034-30
Speeds 3,000, 1,500, 1,000, 750, 600, 500 min-¹
lower speeds possible on request
Designs IM B3, IM B35, IM B5, IM B14, IM B34 and derived designs according to EN 60034-7
Cooling types DIN EN 60034-6 (IEC 60034-6)
self-ventilated, IC 411
externally ventilated, IC 416
unventilated, IC 410
Coolant temperature standard -20 °C to +40 °C
Installation height 1000 (deviating temperatures and installation heights on request) m über NN
produktbild

Other brake motor features

  • Energy-efficient and environmentally friendly
  • Design according to DIN EN 60034 (IEC 60072)
  • Attachment dimensions and allocation of power according to DIN 42673, 42677 or progressive
  • robust low-vibration cast iron design
  • thermal class 155 (F) with thermal reserve, 180 (H) possible as option
  • Connection boxes optionally on top, right and left
  • Supply multiple modifiability
  • Transponder optional, RFID system iID®2000 (13.56 MHz based on ISO 15693)
