Vacon NXP air cooled

The Vacon NXP is an air-cooled AC drive solution suitable for all applications where reliability, dynamics, precision and performance are important.

VACON NXP is available in wall-mount, IP00 module or ready-to-connect standalone control cabinet solutions. It offers exceptional motor control for induction and PM motors, gearless drive solutions and parallel connection solutions for high power motors.

Vacon NXP Wall Mount

Performance features

  • Complete power range up to 2 MW
  • A wide range of applications adapts the Vacon NXP to almost any need
  • Controls induction and permanent magnet motors
  • Dynamic open and closed loop vector control
  • A full range of communication and I/O options
  • Fast communication between inverters

Advantages

  • Complete power and voltage range
  • Many standardized options
  • A wide range of applications adapts the Vacon NXP to almost any need, controlling induction and permanent magnet motors
  • Dynamic open and closed loop vector control
  • A full range of communication and I/O options
  • Maritime approvals and functional safety

Application areas

  • Conveyor equipment
  • Cranes and hoists
  • High speed compressors
  • Ski lifts
  • Main thrusters and bow thrusters
  • Extruders, winches and cargo pumps
  • Oil pumps
  • Test rigs
  • Uninterruptible power supply (UPS)
  • Grinders and mixers

Vacon NXP inverter modules

VACON® NXP high-power modules with IP00 protection are designed for cabinet mounting, for switchgear or for installation in separate enclosures. Installation is child's play due to the compact design.

Vacon NXP inverter modules of sizes FR10-FR12 contain one (FR10 and FR11) or two (FR12) power modules. VACON NXP sizes FR13-FR14 consist of two to four non-regenerative front-end (NFE) units and one (FR13) or two (FR14) inverter units. External AC chokes are also included. The VACON® NXP modules are available with both 6-pulse and 12-pulse feeds.

Features

  • Easy cabinet integration with additional mounting kits
  • One of the most compact inverters on the market
  • Extensive approvals for use in the maritime industry
  • VACON® DriveSynch features for high performance and/ or redundancy

Advantages

  • Lower development effort due to optimized module design saves time and money
  • Requires less cabinet space due to compact size while reducing overall cost
  • Better redundancy and higher power up to 5.0 MW

Applications

Conveyors, cranes and hoists, high speed compressors, ski lifts, main drives and bow thrusters extruders, winches and cargo pumps, oil pumps, test benches, uninterruptible power supplies, grinders and mixers, winders and unwinders, choppers, tunnel boring machines.

Technical data

Voltage and power range 0.55 kW to 2000 kW
Mounting type Wall mounting / IP00 module
Protection type IP00, IP21, IP54



NXP standalone control cabinet

High-quality Vacon® NXP drives are also available as standalone units with IP21 or IP54 enclosure protection. These drives are supplied in a compact cabinet enclosure that is ideal for installation in confined spaces, while offering complete VACON® NXP control flexibility.

Self-contained Vacon® NXP drives are fully assembled at the factory and can be installed immediately. They are ideal for pumps, fans and other applications that require stand-alone drives. Integrated fuses are standard, and additional protection components are not required. It is also possible to integrate a load switch into the inverter as an option, further simplifying handling during operation.

Features

  • Extremely compact cabinet housing
  • Ultra-flash fuses included
  • Optional integrated brake chopper and DC link terminals

Advantages

  • Maximum space utilization while reducing overall cost
  • No additional protection components required

Applications

Auxiliary drives, pumps and fans, main drives and bow thrusters, compressors, cranes and hoists.

Technical data

.
Voltage and power range 160 kW to 560 kW
Mounting type Switch cabinet
Protection type IP21 / IP54 Optional for Frame 10
Hardware configurations - Integrated ultra-flash (UR) fuses (standard)
- Load switches (IEC or UL version) (optional)
- EMC filter L (EN 61800-3, category C3) (standard)
- EMC filter T (for IT networks) (optional)
- Brake chopper (optional)
produktbild

Other interesting products

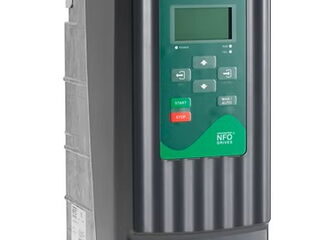

NFO Sine Wave Frequency Inverter

NFO Sine Wave Frequency Inverter

Controls asynchronous motors-used where personal safety, EMC guidelines, quiet switching noise and no harmonics are key needs.

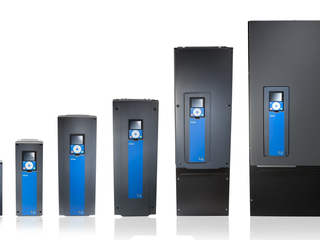

Vacon 100 product family
