Fuse elements / sockets Stadtfeld

The fuse elements from Stadtfeld are suitable for installation in existing as well as new candelabras. Also, Stadtfeld has a socket for uncomplicated mounting on the candelabra.

Fuse element

Complete with fuse heads and fuse cartridges

Stadtfeld's cable junction boxes are made of high quality polycarbonate, which is both robust and fire tested. The fuse elements bring the necessary safety. For Christmas lighting, the sockets are particularly suitable.

The design of the HSW 4021 / 4022 sockets makes them ideal for quick installation on conical or cylindrical candelabra. Consists of an impact-resistant, fiberglass-reinforced and UV-stabilizing polycarbonate and a high-quality pre-assembled connection cable, which is pre-assembled by means of bend protection and strain relief. For mounting, drill a 12 mm hole in the candelabra for cable entry.

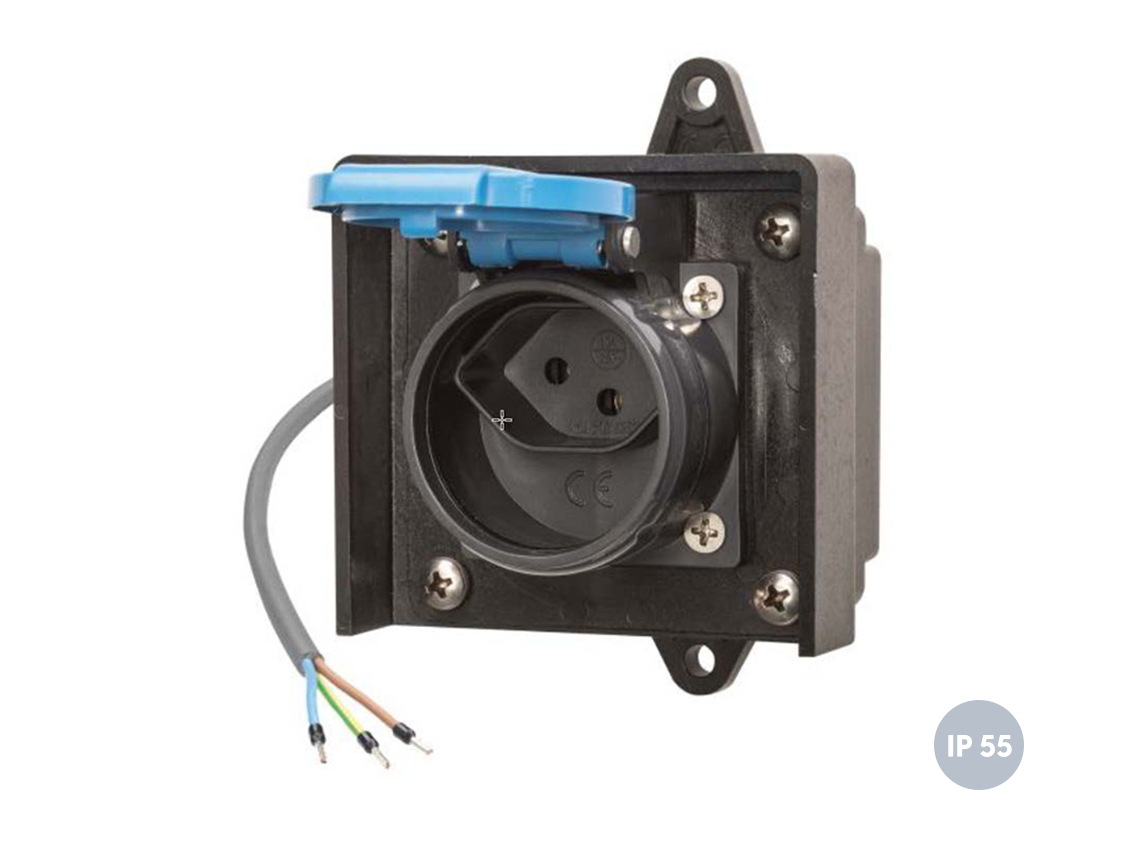

Socket HSW 4021 / 4022

For mounting on candelabra

The HSW 4021 / 4022 sockets are ideal for quick mounting on conical or cylindrical candelabra due to their complete pre-wired design. Consists of an impact-resistant, fiberglass-reinforced and UV-stabilizing polycarbonate and a high-quality pre-assembled connection cable, which is pre-assembled by means of bend protection and strain relief. For mounting, drill a 12 mm hole in the candelabra for cable entry.

Technical data

The technical data for the HSW fuse elements can be found in the datasheet or below.

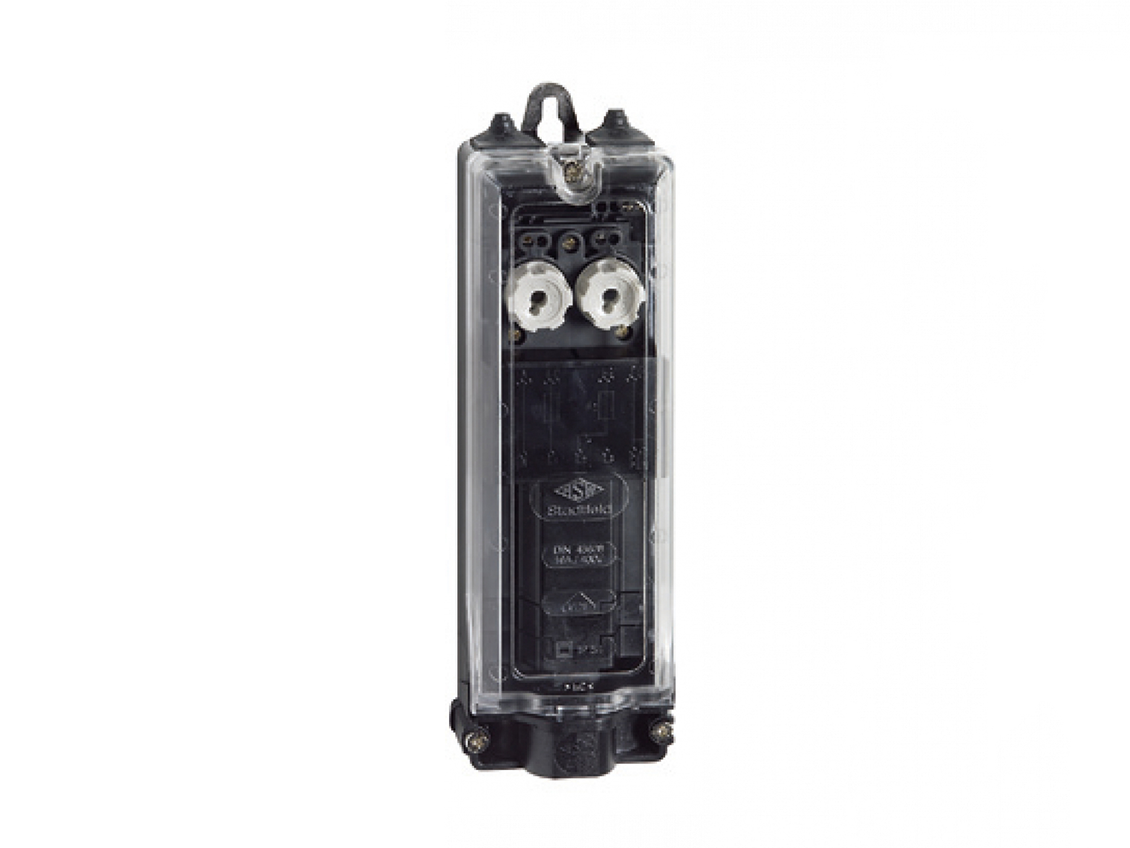

Fuse element type HSW 1921


Fuse element, complete with fuse heads and fuse cartridges. With 2 fuses, type HSW 1921 - fuse holder with plastic screw caps E14

Order number 104246 / 104296
Fuse 2 x 6 A/D01 / 2 x 10 A/D01
Connection 3L+N+PE
Terminal 5 x 10 mm2
Pole-Ø inside 70 mm
Mass 66 x 264 x 57 mm (WxHxD)

Fuse element type HSW 2320

Fuse element, complete with fuse heads and fuse cartridges. With 2 fuses, type HSW 2320 - fuse holder with porcelain screw caps E14

Order number 104258 / 104247
Fuse 2 x 6 A/D01 / 2 x 10 A/D01
Connection 3L+N+PE
Terminals 5 x 16 mm2
Pole-Ø inside 89 mm
Dimensions 84 x 290 x 72 mm (WxHxD)

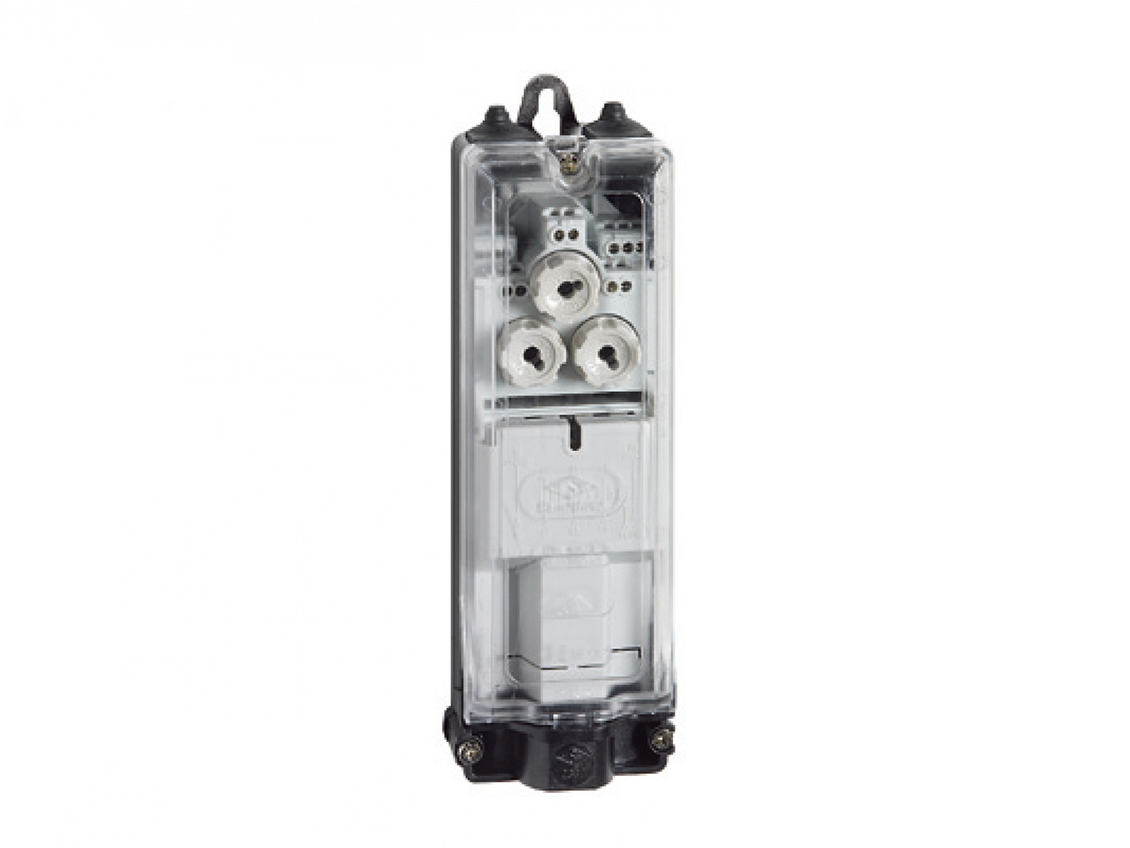

Fuse element type HSW 2330

Fuse element, complete with fuse heads and fuse cartridges. With 3 fuses, type HSW 2330 - fuse holder with porcelain screw caps E14

Order number 104253 / -
Fuse 3 x 10 A+D01 / 3 x 16 A/D01
Connection 3L+N+PE
Terminal 5 x 16 mm2
Pole-Ø inside 89 mm
Mass 84 x 265 x 72 mm (WxHxD)

Socket HSW 4021 / 4022 for mounting on candelabra

The sockets HSW 4021 / 4022 are ideal for quick mounting on conical or cylindrical candelabra due to their complete pre-wired design. Consists of an impact-resistant, fiberglass-reinforced and UV-stabilizing polycarbonate and a high-quality pre-assembled connection cable, which is pre-assembled by means of bend protection and strain relief. For mounting, drill a 12 mm hole in the candelabra for cable entry.

Socket type 13/IP 55

Splash-proof (10A / 250 V)

Order number 164399
Socket Type 13 / IP 55 (10 A / 250 V)

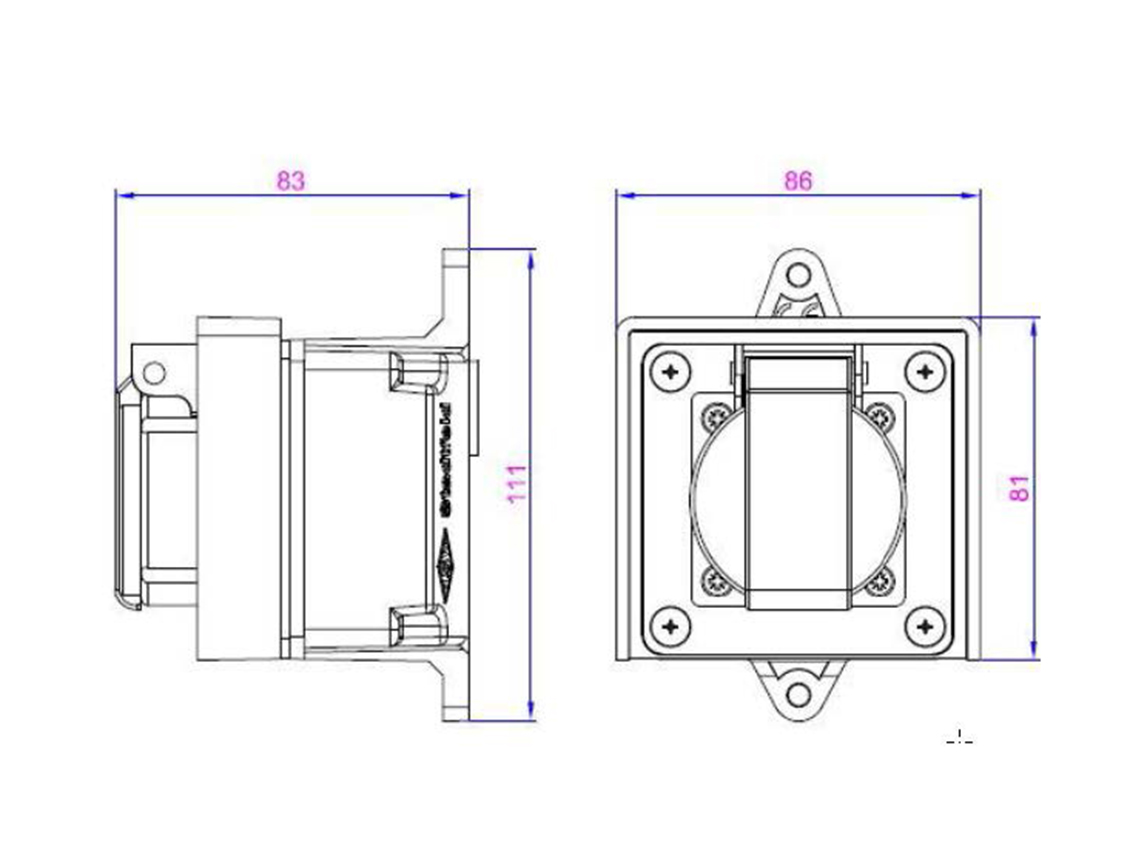

Dimensions 86 x 111 x 83 mm (WxHxD)
incl. cable 6.0 m

Socket type 23/IP 55

Splash-proof (16A / 250 V)

Order number 164400
Socket outlet Type 23 / IP 55 (16 A / 250 V)
Dimensions 86 x 111 x 83 mm (WxHxD)
incl. cable 6.0 m
